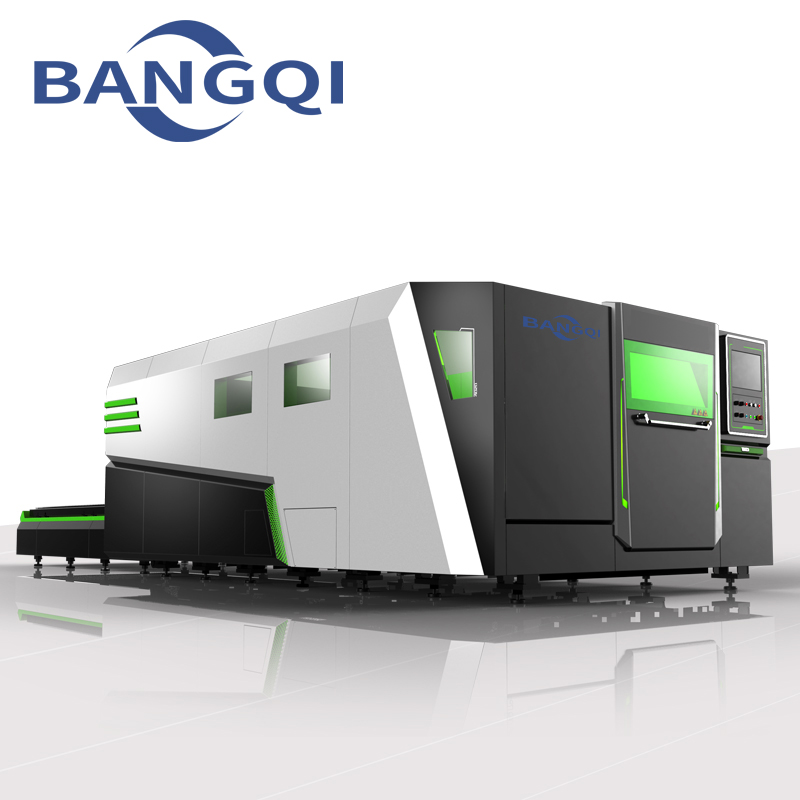

Full Cover Fiber Laser Cutting Machine

E series fiber laser cutter is designed with a protective cover and exchange table

Widely equipped with 1kw to 6kw;
The exchange of table only takes 15 seconds;
With cover and exchange table;

Category: Fiber Laser Cutting Machine

Parameter
Model	BQ3015E	BQ4020E	BQ6020E	BQ6025E
Work Area	3000*1500mm	4000*2000mm	6000*2000mm	6000*2500mm
Position accuracy	±0.05mm
Repeated positioning	±0.02mm
Max speed	130m/min
Max acceleration	1.0G
Total weight	6000KG
Max load	800KG
Power	Three-phase AC 380V 50Hz

Machine Body Feature

Main parts

CUTTING RANGE
Material	1000w	1500w	2000w	3000w	4000w	6000w
Carbon steel（mm）	0.4-12	0.4-14	0.4-16	0.4-18	0.4-20	0.4-22
Stainless steel（mm）	0.4-5	0.4-5	0.4-6	0.4-8	0.4-10	0.4-14
APPLICATION
Could cut: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.
